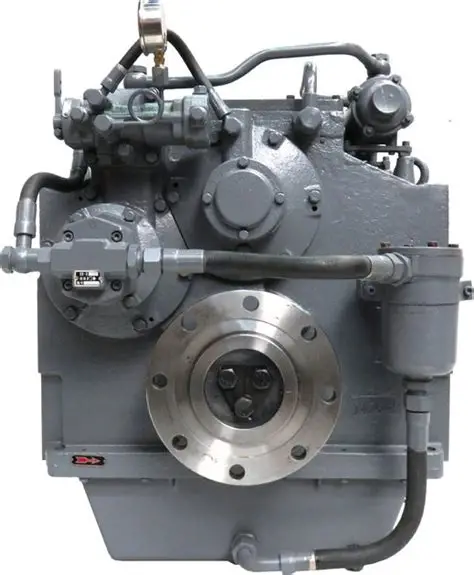

NEW Advance MB270A Heavy Duty Marine Gearbox 4.05:1 Reduction

Description

Advance MB270A Heavy Duty Marine Hydraulic Gearbox For Commercial Applications and option for Live PTO.

Available in the following ratio options:

4.05:1 (0.20hp/RPM)
4.53:1 (0.20hp/RPM)
5.12:1 (0.20hp/RPM)
5.50:1 (0.18hp/RPM)
5.95:1 (0.15hp/RPM)
6.39:1 (0.12hp/RPM)
6.82:1 (0.12hp/RPM)

Max Input Speed 2500RPM

Adaptor Plate Options:

SAE1
SAE0

Control Options:

Mechanical
Electronic

Drive Plate Options:

14”
16”
18”

Option for Live PTO

Option for Gearbox Oil Cooler

Weight 675KG

Drop Centre 270mm

Dimensions 594x810x868 mm
