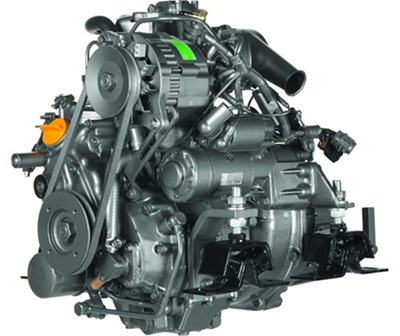

Yanmar 1GM10 Marine Diesel Engine 9hp.
$5,142.00
- Description
Description
YM & GM Series 7–21kW (9–29HP) Famed for their reliability, the GM Series diesels – single and two cylinder – feature pre-combustion chamber indirect injection. The all-new YM Series has been introduced, with the arrival of the 3YM20 15.3 kW (21HP) and 3YM30 21kW (29HP) three-cylinder engines. This is the latest technology for quiet, smooth power at the lowest possible weight. GM Series 1GM10E (9HP/7kW) Lightweight single-cylinder auxiliary diesel with a straight drive. Built for optimum power to weight and rugged durability. Runs and runs, smoothly, quietly and cleanly.
| Technical Specification | Value |
|---|---|
| Configuration | 4-stroke, vertical, water-cooled diesel engine |
| Number of cylinders | 1 |
| Bore × Stroke | 75 × 72 mm (2.95 × 2.83 in) |
| Displacement (lit / cu. in.) | 0.318 L (19.41 cu. in.) |
| Cont. Rating @ Crankshaft | 6/3400 kW/rpm (8/3400 hp/rpm) |
| Max. Output @ Crankshaft | 7/3600 kW/rpm (9/3600 hp/rpm) |
| Combustion system | Special swirl-type pre-combustion chamber |
| Starting system | Electrical with manual combination |
| Cooling system | Direct seawater |
