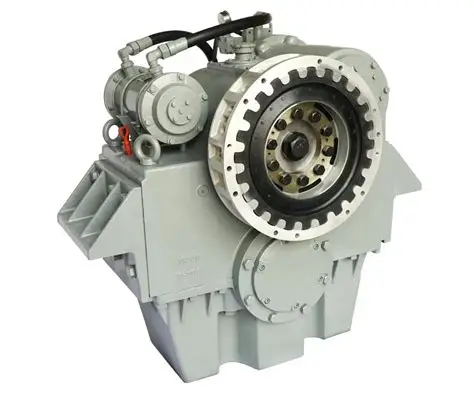

NEW Advance HCT600A Heavy Duty Marine Gearbox 8.66:1 Reduction

Description

Advance HCT600A Heavy Duty Marine Hydraulic Gearbox For Commercial Applications

Available in the following ratio options:

6.06:1 (0.55hp/RPM)
6.49:1 (0.49hp/RPM)
6.97:1 (0.45hp/RPM)
7.51:1 (0.45hp/RPM)
8.04:1 (0.41hp/RPM)
8.66:1 (0.36hp/RPM)
9.35:1 (0.35hp/RPM)

Max Input Speed 2100RPM

Adaptor Plate Options:

SAE0
SAE00

Control Options:

Mechanical
Electronic

Drive Plate Options:

14”
18”
21”

Option for Gearbox Oil Cooler

Weight 1600KG

Drop Centre 415mm

Dimensions 805x1094x1271 mm
