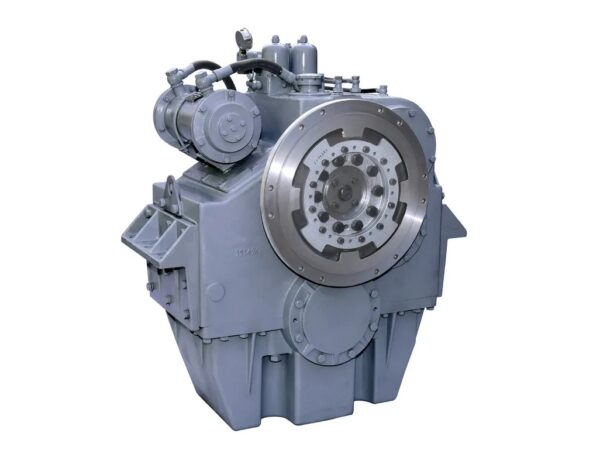

NEW Advance HCT400A Heavy Duty Marine Gearbox 6.09:1 Reduction

Description

Advance HCT400A Heavy Duty Marine Hydraulic Gearbox For Commercial Applications

Available in the following ratio options:

6.09:1 (0.44hp/RPM)
6.49:1 (0.44hp/RPM)
6.93:1 (0.44hp/RPM)
7.42:1 (0.41hp/RPM)
7.95:1 (0.38hp/RPM)
8.40:1 (0.35hp/RPM)
9.00:1 (0.32hp/RPM)
9.47:1 (0.32hp/RPM)

Max Input Speed 1800RPM

Adaptor Plate Options:

SAE1
SAE0

Control Options:

Mechanical
Electronic

Drive Plate Options:

14”
16”
18”

Option for Gearbox Oil Cooler

Weight 1450KG

Drop Centre 375mm

Dimensions 800x1052x1130 mm
