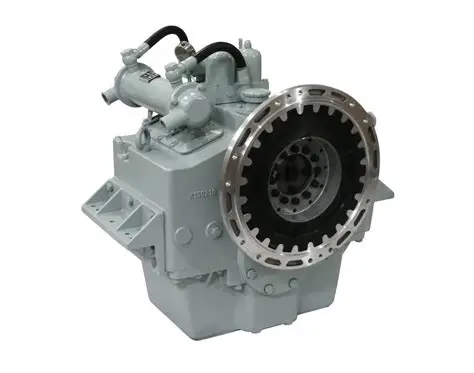

NEW Advance HC400 Heavy Duty Marine Gearbox 1.50:1 Reduction

Description

Advance HC400 Heavy Duty Marine Hydraulic Gearbox For Commercial Applications

Available in the following ratio options:

1.50:1 (0.45hp/RPM)
1.77:1 (0.45hp/RPM)
2.04:1 (0.45hp/RPM)
2.50:1 (0.45hp/RPM)
3.00:1 (0.45hp/RPM)
3.25:1 (0.45hp/RPM)
3.38:1 (0.45hp/RPM)
3.42:1 (0.45hp/RPM)
4.06:1 (0.38hp/RPM)
4.61:1 (0.25hp/RPM)
4.94:1 (0.25hp/RPM)

Max Input Speed 1800RPM

Adaptor Plate Options:

SAE1
SAE0

Control Options:

Mechanical
Electronic

Drive Plate Options:

14”
16”
18”

Option for Gearbox Oil Cooler

Weight 820KG

Drop Centre 264mm

Dimensions 843x950x890 mm
