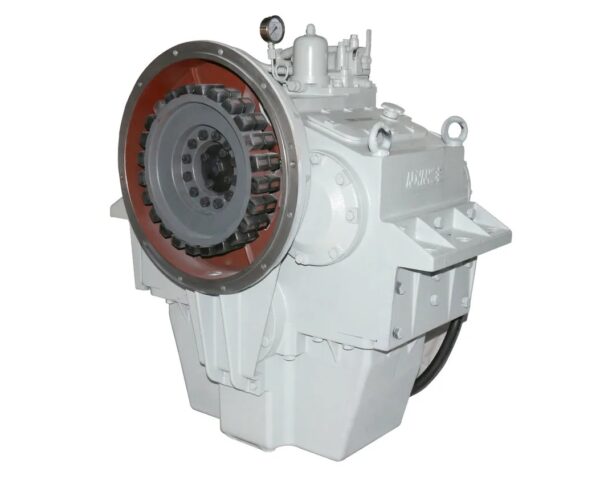

NEW Advance D300A Heavy Duty Marine Gearbox 5.52:1 Reduction

Description

Advance D300A Heavy Duty Marine Hydraulic Gearbox For Commercial Applications and option for Live PTO.

Available in the following ratio options:

4.00:1 (0.35hp/RPM)
4.48:1 (0.33hp/RPM)
5.05:1 (0.30hp/RPM)
5.52:1 (0.25hp/RPM)
5.90:1 (0.25hp/RPM)
6.56:1 (0.20hp/RPM)
7.06:1 (0.20hp/RPM)
7.63:1 (0.17hp/RPM)

Max Input Speed 2300RPM

Adaptor Plate Options:

SAE1
SAE0

Control Options:

Mechanical
Electronic

Drive Plate Options:

14”
16”
18”

Option for Live PTO

Option for Gearbox Oil Cooler

Weight 940KG

Drop Centre 355mm

Dimensions 786x920x1040 mm
